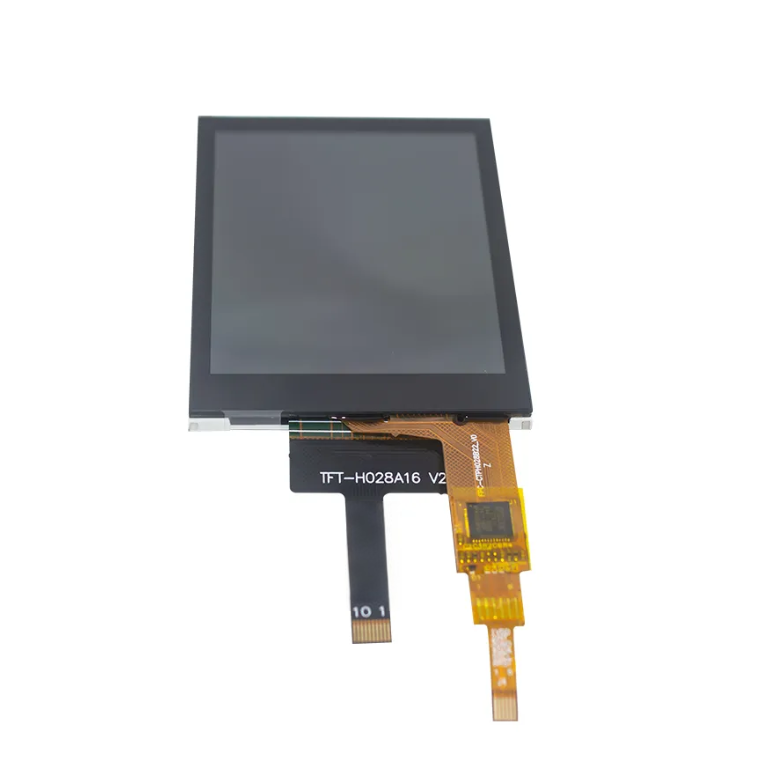

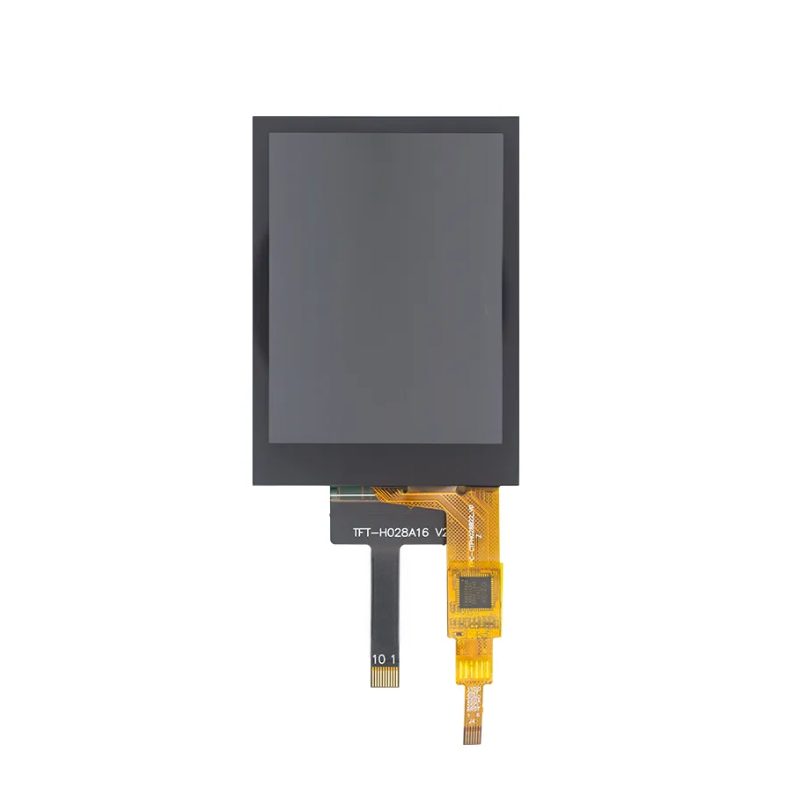

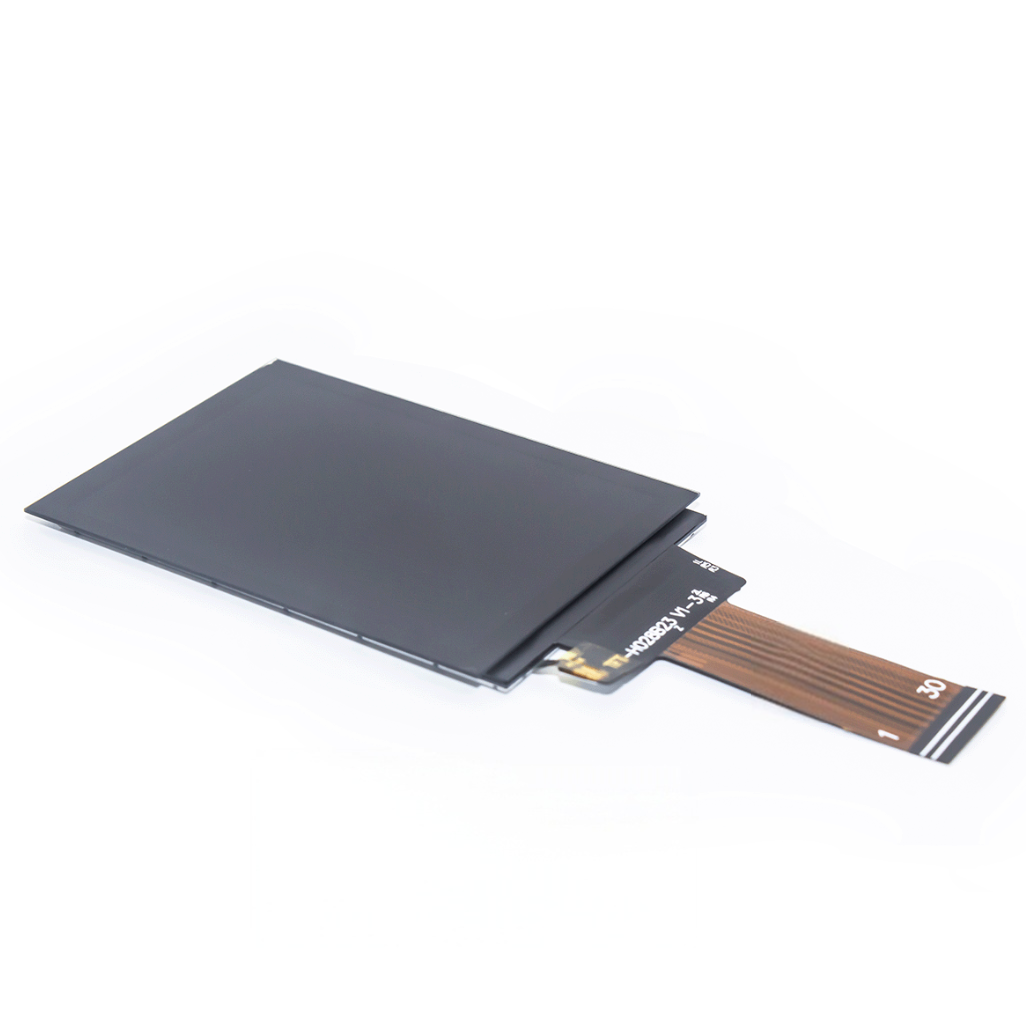

2.8 inch IPS TFT LCD display Module SPI interface 400 brightness 240*320 Pixels with RTP/CTP
Model No. TFT028BT
2.8 inch IPS LCD display SPI interface 400 brightness resolution: 240*320 driver IC: ST7789 With Capacitive Touch Panel.
Product Features
· Model NO. : TFT028BT
· Size: 2.8
· Resolution: 240x320
· Shape of Display: Rectangular
· Interface: SPI
· Driver IC: ST7789
· Touch Screen: CTP
Share
PDF DOWNLOAD + Add inquiry
Technical Specifications Table
  • Size
  • 2.8
  • mm
  • Resolution
  • 240x320
  • Dot
  • Model No.
  • TFT028BT
  • Product Type
  • IPS
  • Shape of Display
  • Rectangular
  • Outline Size
  • 50x69.20x2.25
  • mm
  • Active Area
  • 43.20x57.6
  • mm
  • View Angle
  • All Angles
  • Drive IC
  • ST7789
  • Interface
  • SPI
  • Touch Screen
  • CTP
  • OP
  • -20°C~+70°C
  • ℃
  • Remark
  • with RTP/CTP
Application field description
Product Introduction


2.8 inch IPS LCD display SPI interface 400 brightness resolution: 240*320 driver IC: ST7789 wtih CTP

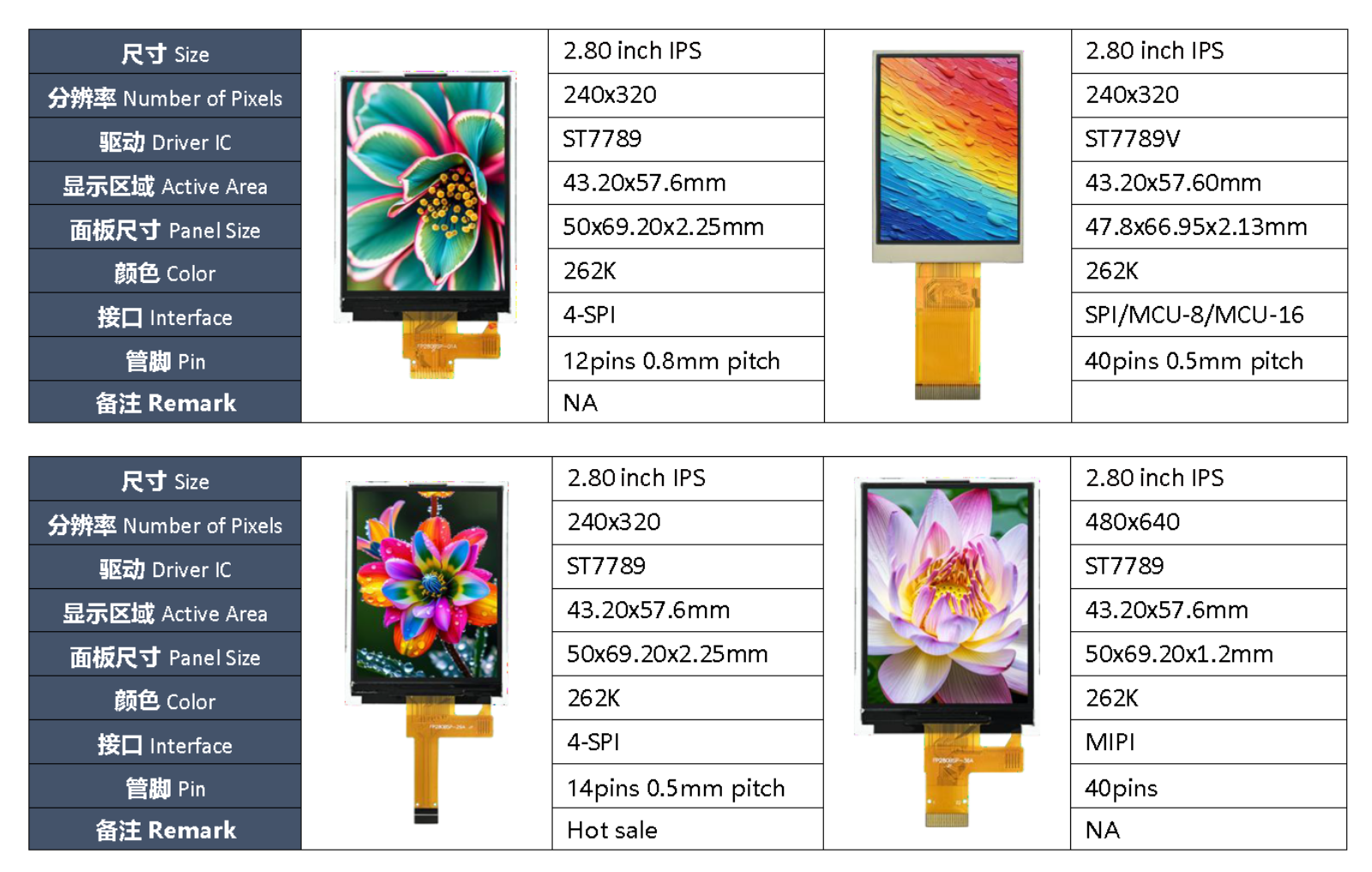

2.8inch 240320 details.png

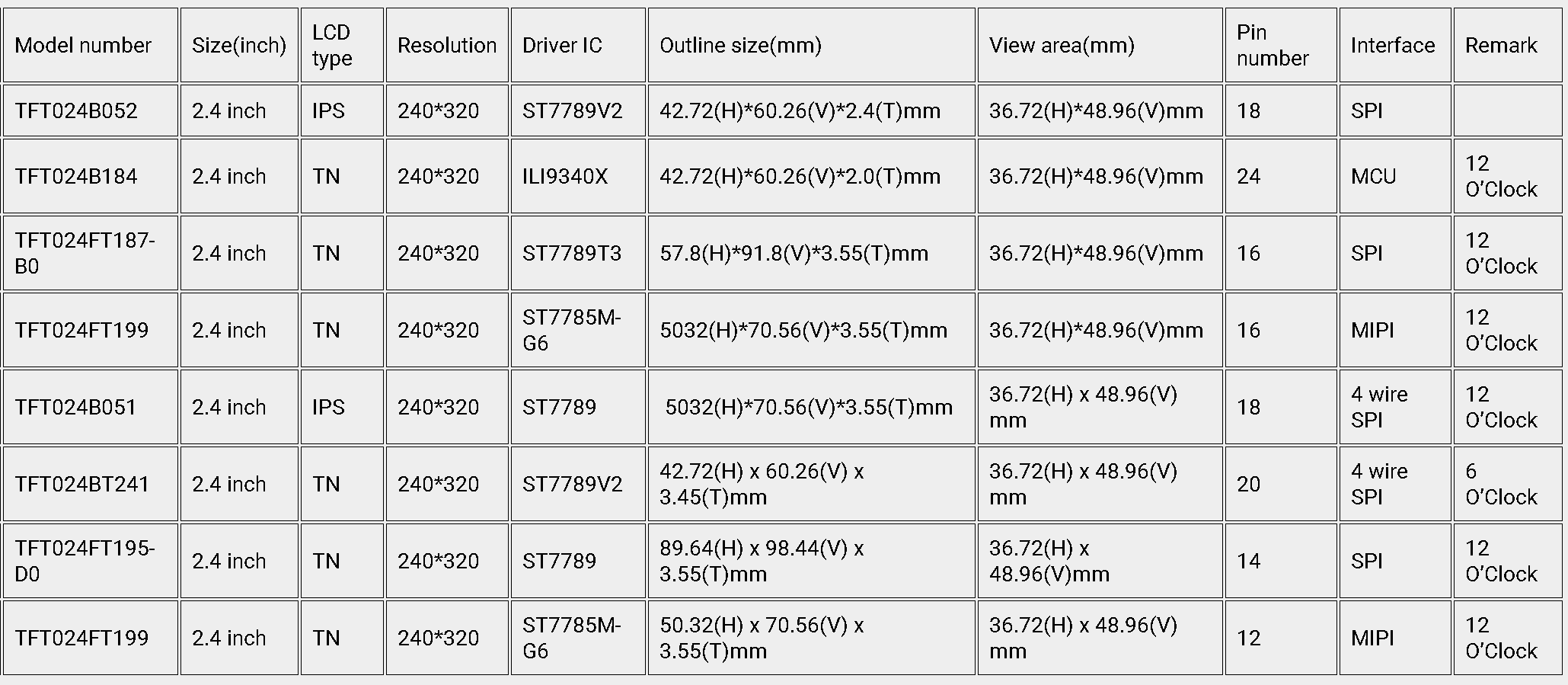

  • 2.4 inch models.png

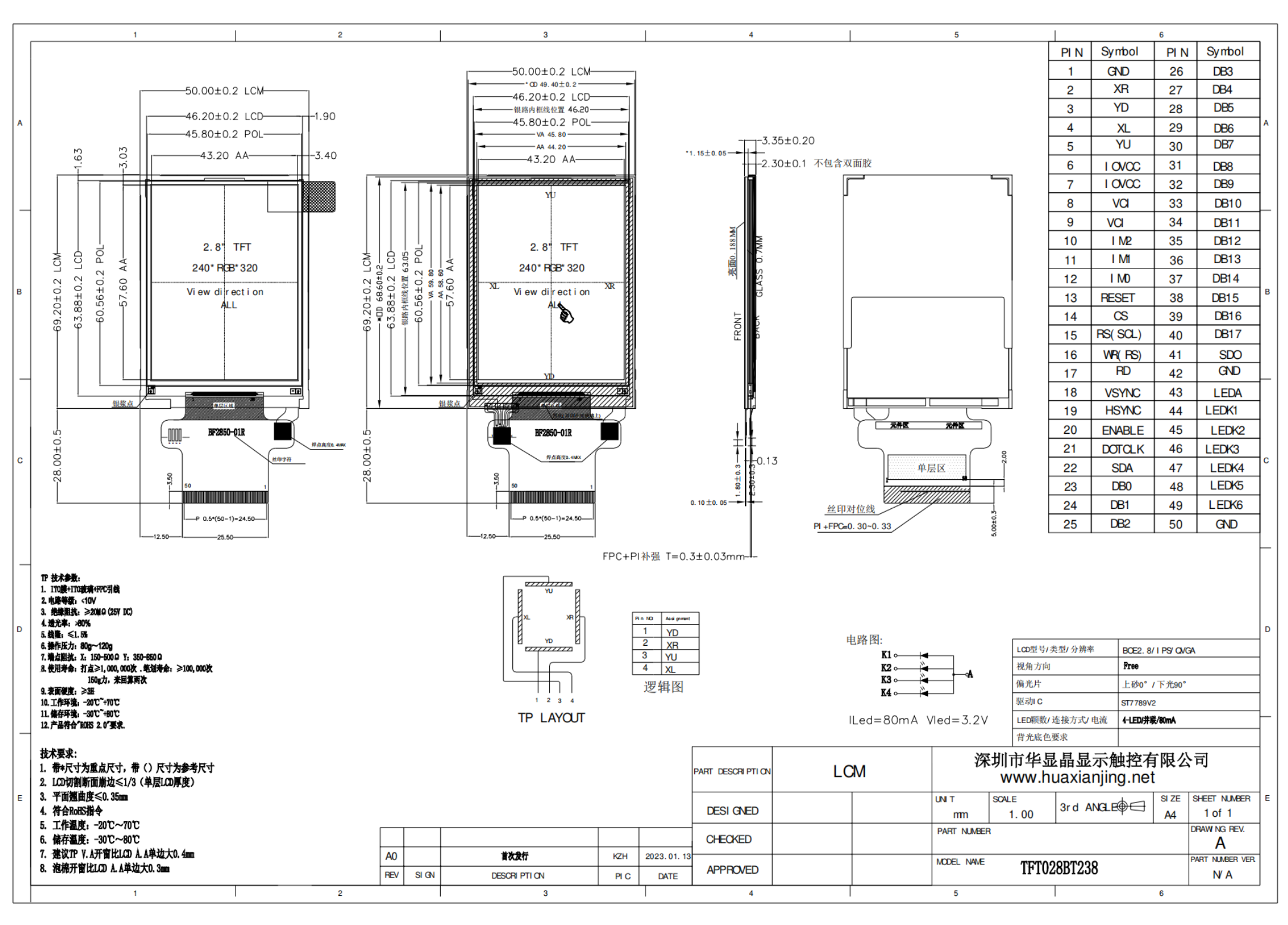

    The drawing:

    2.8inch 240320 drawing.png
