• Size
• 4.3
• mm

• Resolution
• 480*272
• Dot

• Model No.
• TFT043BT003

• Product Type
• IPS

• Shape of Display
• Rectangular

• Outline Size
• 126.04x84.86x2.9
• mm

• Active Area
• 95.04x53.8
• mm

• View Angle
• All Angles

• Drive IC
• ILI9488

• Interface
• SPI

• Touch Screen
• CTP

• OP
• -20°C~+70°C
• ℃

• Remark
• with RTP/CTP

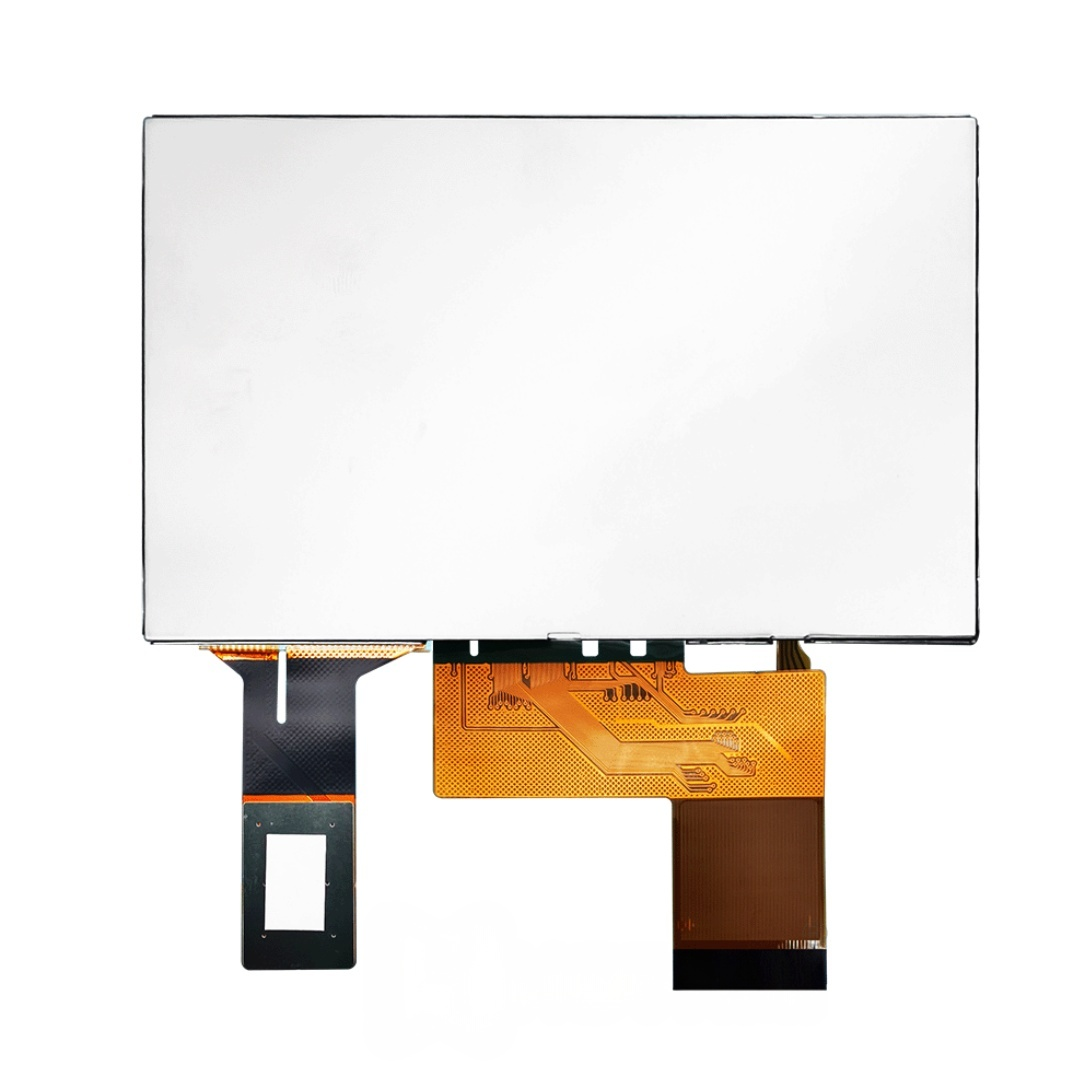

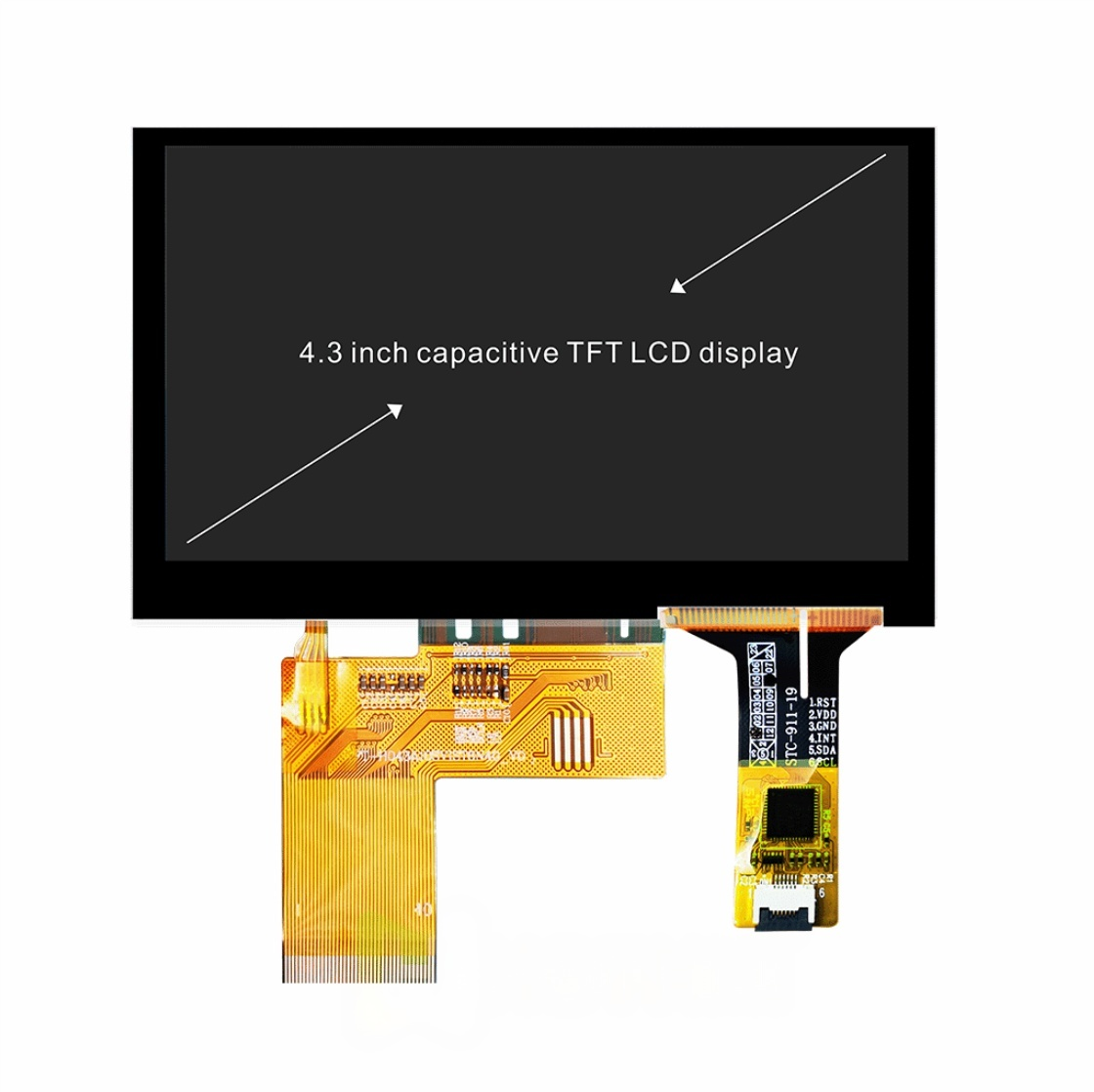

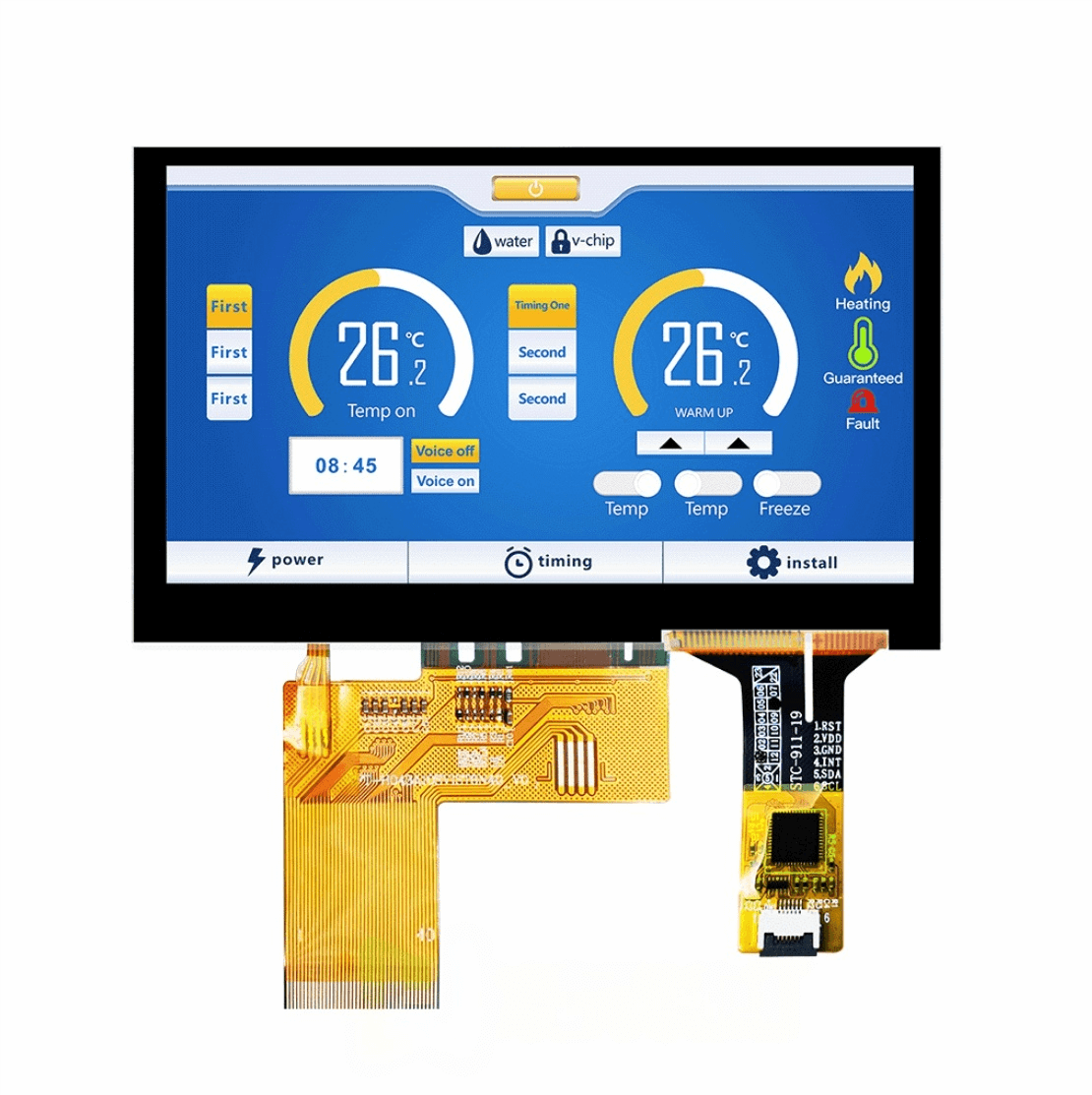

4.3 inch TFT Touch Screen 480*272 resolution RGB interface IPS viewing angle driver IC ILI9488/FT6206

This is a 4.3 inch TFT Touch Screen boasting a resolution of 480x272. It comes with an RGB interface and utilizes an IPS panel for excellent viewing angles. The screen is driven by the ILI9488/FT6206 driver IC, ensuring reliable performance.

Product Features:

4.3 inch display size, offering a balance between portability and visibility.

A resolution of 480x272 for clear and distinct visuals.

RGB interface for seamless connectivity.

IPS technology provides wide viewing angles, enabling clear viewing from different positions.

Powered by the ILI9488/FT6206 driver IC for stable operation.

Applicable Scenarios:

Perfect for portable media players, providing a great viewing experience on the go.

Can be used in small industrial control devices for easy monitoring and control.

Suitable for car dashcams and backup cameras for clear display of images.

Ideal for DIY electronics projects where a compact touch screen is needed.

Product Parameter:

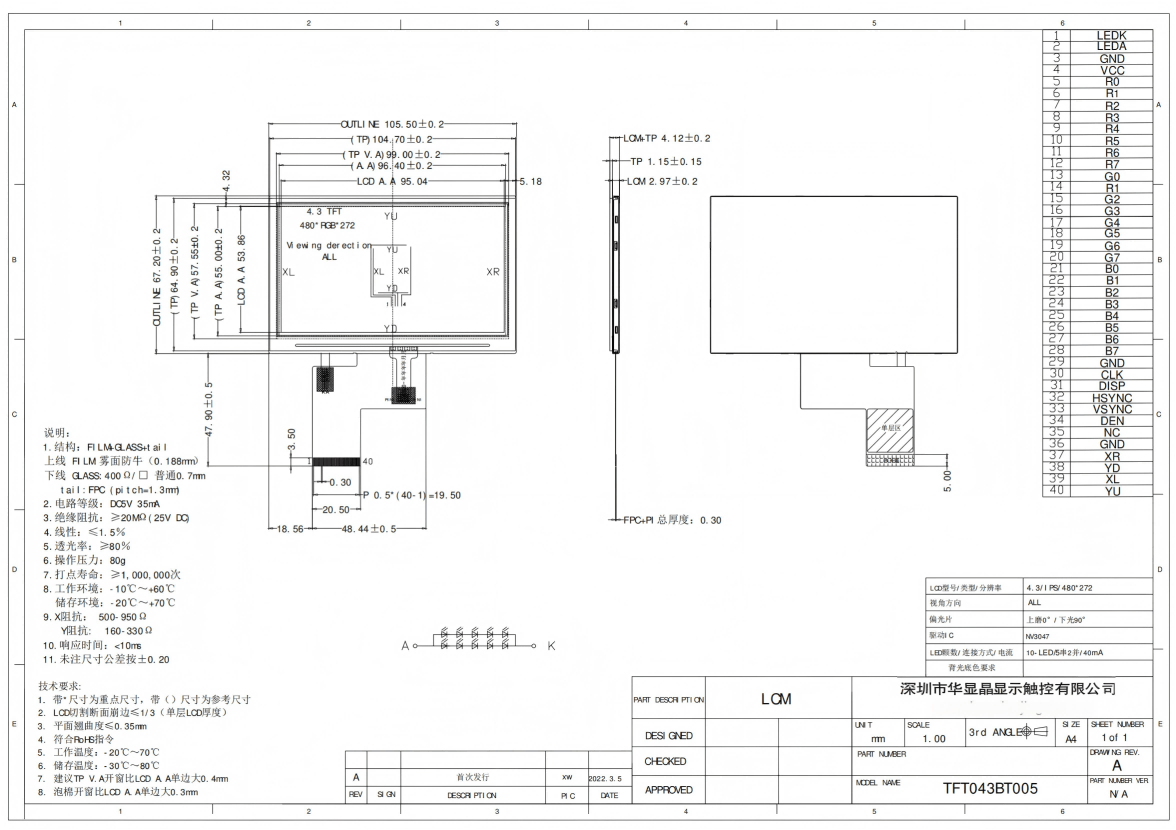

The drawing:
