10.1” In-Cell IPS TFT Display Module – Slim Design for Indoor Portable and Consumer Electronics

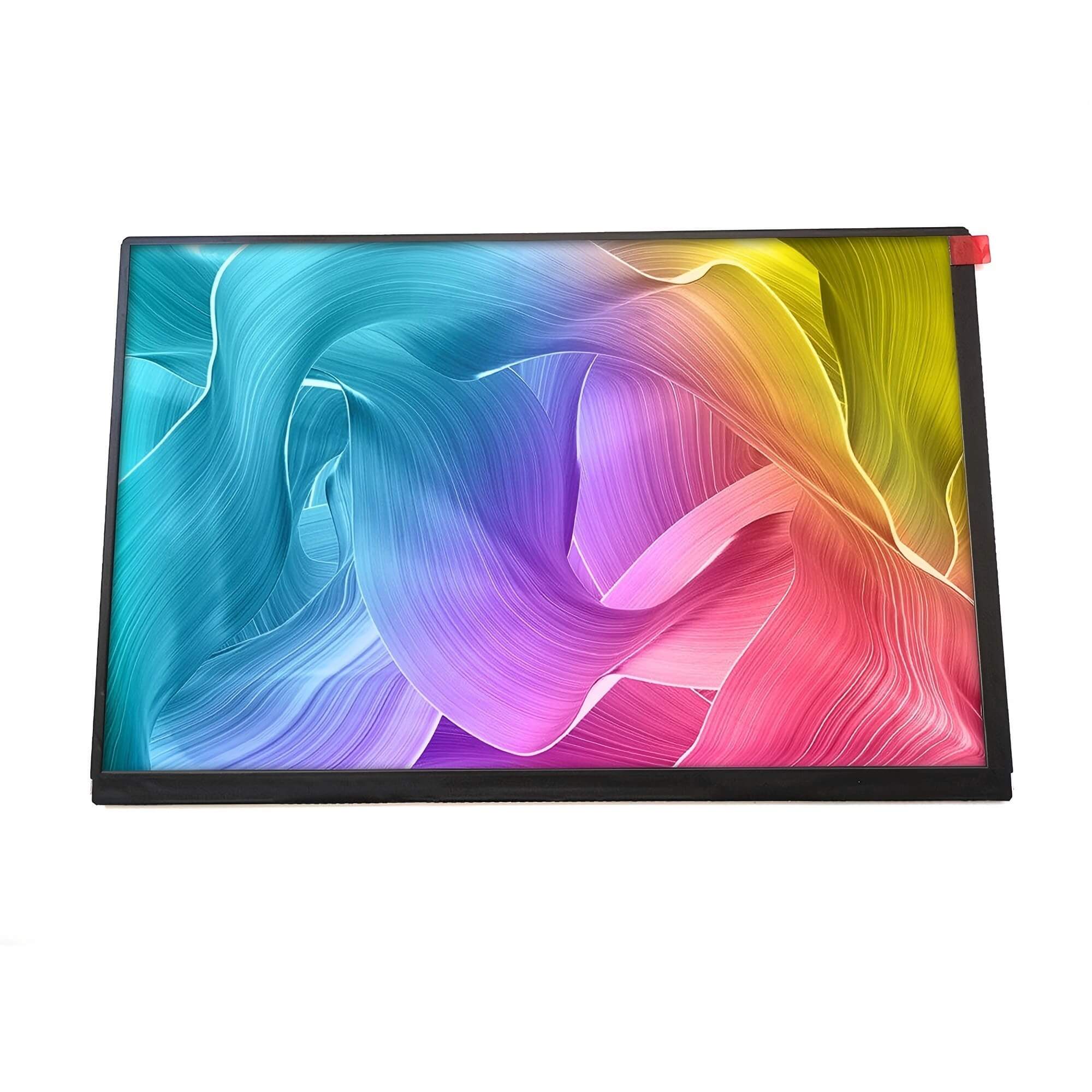

Hua Xian Jing Display & Touch Technology Co., Ltd. is proud to present the newly developed 10.1-inch In-Cell IPS TFT LCD Module (Model: TFT101CL002-45IH-32A) — a high-quality, ultra-thin display solution tailored for indoor portable terminals, learning devices, and consumer electronics.

High-Definition Display with In-Cell Technology

This module features a 10.1-inch IPS TFT panel with a resolution of 800×1280 pixels, delivering sharp, bright, and true-to-life visuals. Its normally black, transmissive display mode provides superior contrast and color saturation. With a luminance of 350 cd/m² and uniformity above 80%, it ensures excellent visual consistency for all indoor environments.

The In-Cell touch structure integrates the touch sensor directly into the LCD cell, reducing thickness and weight compared to traditional G+G or OCA laminated modules. This integration not only enhances optical clarity but also increases durability and simplifies the overall structure — ideal for handheld and tablet-style applications.

Ultra-Thin Structure and MIPI Interface

The module is engineered for slim, elegant product designs. It features an outline dimension of 140.36(W) × 216.84(H) × 2.37(T) mm and an active area of 135.36 × 216.58 mm. With a total thickness of only 2.37 ± 0.2 mm, this display offers designers the flexibility to create thinner and more compact products.

Equipped with a MIPI interface (4-lane), the display supports high-speed data transmission and smooth graphical rendering. The built-in JD9366D driver IC ensures stable performance and excellent compatibility with popular SoCs used in Android and Linux systems.

Stable Performance for Indoor Applications

Designed specifically for indoor environments, the TFT101CL002-45IH-32A operates reliably within a temperature range of -10°C to +50°C and can be stored between -20°C and +60°C. These conditions make it an excellent choice for consumer and educational devices that prioritize stability and visual quality over extreme temperature resistance.

The LED backlight operates at a forward voltage of 21.6–25.6V with a typical current of 60mA, offering bright output with energy efficiency. All components comply with RoHS standards, and the product is manufactured under strict ISO quality control.

Ideal Applications

With its sleek profile and optimized indoor performance, this 10.1-inch In-Cell IPS TFT module is best suited for:

Portable handheld terminals

Educational tablets and learning devices

Smart display accessories

Indoor control panels

Consumer electronics and multimedia products

Competitive Advantage

Hua Xian Jing Technology provides high-quality LCD modules with competitive pricing, strong customization capabilities, and fast delivery. Customers can request custom versions with modified brightness, interface, or touch specifications.

• Model: TFT101CL002-45IH-32A
  Display Size: 10.1" IPS TFT
  Resolution: 800×1280
  Interface: MIPI
  Driver IC: JD9366D
  Luminance: 350 cd/m²
  Outline Dimension: 140.36×216.84×2.37 mm
  Operating Temp: -10°C ~ +50°C
  Touch: Optional In-Cell Capacitive Touch

Contact us today to learn more about this new ultra-thin LCD module and discuss your customization needs.
